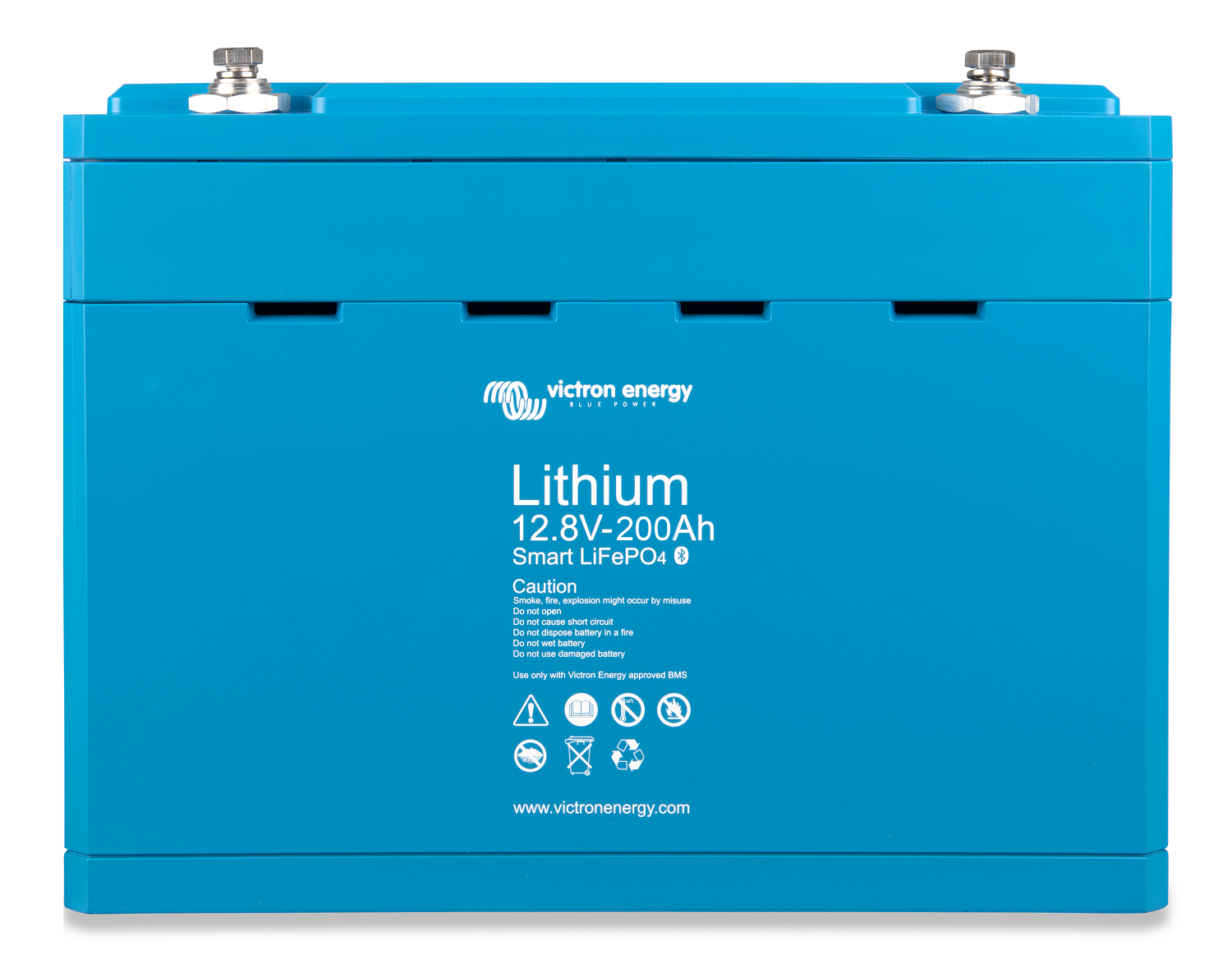

Relative advantages of having an LFP battery BMS integrated into the battery, or separate? Victron BAT512120610 Smart Lithium Iron Phosphate Battery 12.8V 200 Ahr Older generation Lithium Smart Batteries

It would seem to me that having the BMS as a separate component rather than integrated into the battery would be advantageous. If the BMS fails, it could be more easily replaced rather than having to remove an entire battery for return to the manufacturer. Is this a significant advantage?

Status: Open Jun 03, 2025 - 06:30 AM

Technical Support

Do you have the same question? Follow this Question

1answer

Answer

Jun 03, 2025 - 06:30 AM

Yes, we prefer our external BMS for many reasons.

For boat installations, it is the most ABYC compliant way to install a lithium battery system. See our blog post Victron New Generation Lithium Batteries take ABYC standard compliance to a whole new level
Built in 500 Amp Contactor acts as a fail-safe emergency shut off
Built in Battery Monitor
Pre-Alarm signal give a warning before shutoff
Built in Bluetooth
Local and remote monitoring when used with a Cerbo GX
Built in pre-charge circuit
ATC/ATD ports to control chargers and loads separately
DVCC closed loop control for compatible Victron inverter/charger, Orion XS DC-DC battery charger and MPPTs via a connected GX device. The BMS controls charging voltage and current
Discharge floor used to set the minimum SoC to determine how far the battery is allowed to be discharged
